Box Type Hydraulic Breaker
At HOPE, we build box type hydraulic breakers for operators who need quiet power that lasts. Our fully enclosed design cuts on-site noise and vibration, so you can work in urban areas without losing the impact force to break concrete and rock.
We machine every unit from high-quality alloy steel, with optimized oil passages that keep hydraulics smooth through long, heavy shifts. Our full model line fits 0.5-ton mini excavators up to 100-ton large rigs, covering every job from small demo to big quarry work. Every breaker gets strict quality checks before shipping, backed by CE/ISO certification, test reports, and video inspections. We support OEM/ODM, and our team is online 24/7 for global customers.
What Makes HOPE Different
- Quiet, enclosed build for noise-sensitive urban and residential jobs
- Alloy steel construction for wear resistance and long service life
- Full model range to match any excavator size
- Sealed design protects internal parts from dust, cutting maintenance
- Certified quality and flexible customization for global buyers
Technical Specifications
0.5–18 Ton Excavators
|
Models |
HP05 |
HP10 |
HP20 |
HP30 |
HP35 |
HP40 |
HP43 |
HP45 |

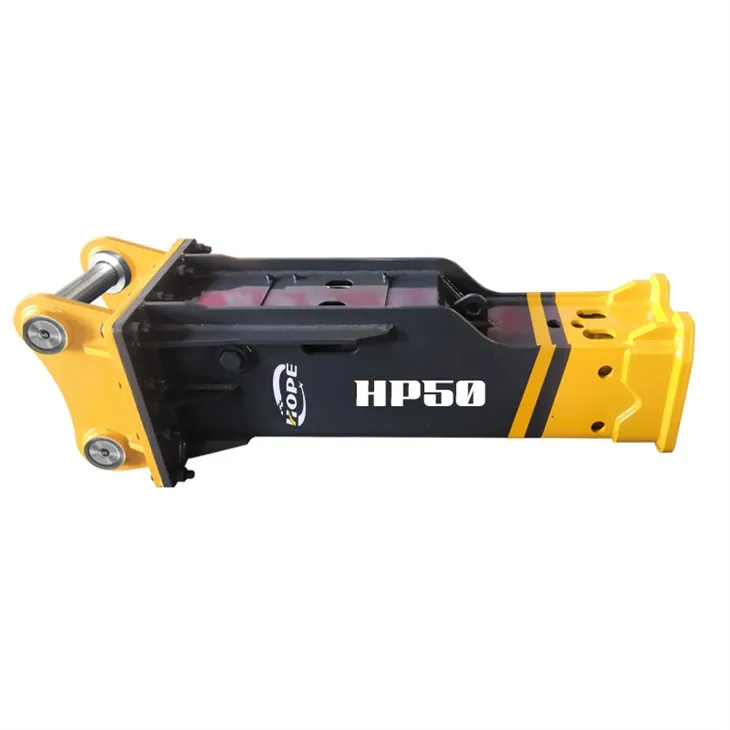

HP50 |
HP60 |
|
|
Weight (kg) |
110 |
140 |
180 |
195 |
310 |
365 |
370 |
480 |
635 |
940 |
1450 |
|
Length (mm) |
1050 |
1130 |
1310 |
1430 |
1460 |
1630 |
1630 |
1850 |
2090 |
2265 |
2650 |
|
Required oil flow (l/min) |
10-25 |
15-25 |
20-30 |
25-50 |
36-60 |
40-70 |
40-70 |
50-90 |
80-110 |
80-110 |
90-120 |
|
Operating Pressure (kg/cm²) |
80-110 |
90-120 |
90-120 |
90-120 |
100-130 |
110-140 |
110-140 |
120-150 |
150-170 |
150-170 |
150-170 |
|
Impact rate (b.p.m) |
900-1400 |
800-1400 |
700-1200 |
600-1100 |
600-1000 |
500-900 |
500-900 |
500-800 |
350-700 |
350-700 |
350-650 |
|
Hose diameter (inch) |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
1 |
|
Chisel diameter (mm) |
35 |
40 |
45 |
53 |
60 |
68 |
70 |
75 |
85 |
100 |
125 |
|
Suitable Carrier (ton) |
0.5-2 |
0.8-2.5 |
1.2-3 |
2.5-4 |
3-5 |
4-7 |
4-7 |
5-8 |
9-14 |
10-16 |
15-18 |
18–100 Ton Excavators
|
Models |

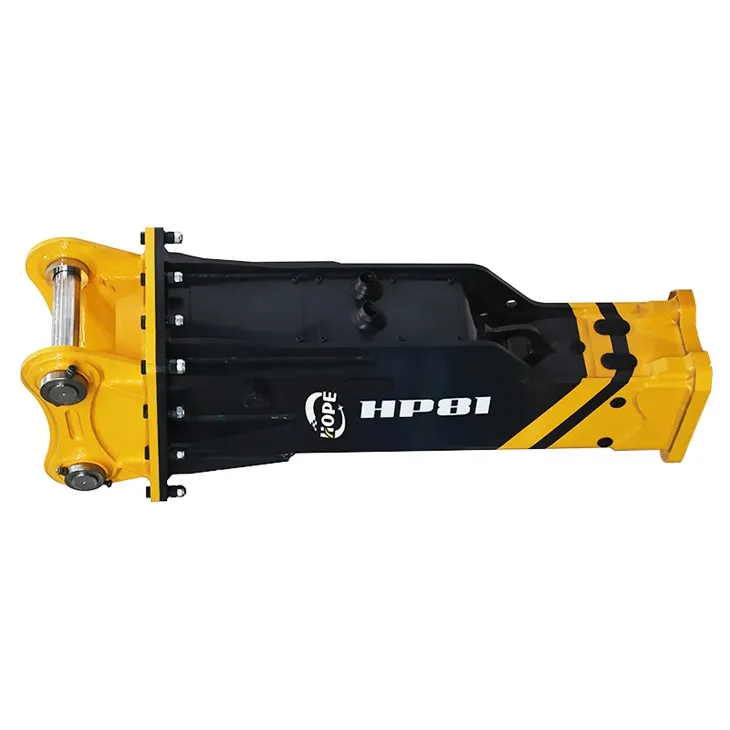

HP81N |
HP81 |
HP100 |
HP121 |
HP131 |
HP151 |
HP185 |
HP195 |
HP205 |
HP210 |
HP215 |
|
Weight (kg) |
1680 |
1970 |
2430 |
2750 |
3100 |
4100 |
4600 |
5400 |
6500 |
7100 |
7400 |
|
Length (mm) |
2680 |
2830 |
2860 |
3070 |
3250 |
3770 |
3910 |
3980 |
4110 |
4250 |
4380 |
|
Required oil flow (l/min) |
120-150 |
120-180 |
150-190 |
180-240 |
200-250 |
200-260 |
220-270 |
250-310 |
290-340 |
320-360 |
340-380 |
|
Operating Pressure (kg/cm²) |
160-180 |
160-180 |
160-180 |
160-180 |
180-200 |
180-200 |
220-270 |
260-300 |
270-300 |
270-300 |
270-300 |
|
Impact rate (b.p.m) |
350-600 |
350-550 |
350-500 |
300-450 |
250-400 |
200-350 |
200-250 |
180-200 |
150-200 |
100-150 |
90-130 |
|
Hose diameter (inch) |
1 |
1 |
1 |
1 |
5/4 |
5/4 |
5/4 |
5/4 |
5/4 |
5/4 |
5/4 |
|
Chisel diameter (mm) |
135 |
140 |
150 |
155 |
165 |
175 |
185 |
195 |
205 |
210 |
215 |
|
Suitable Carrier (ton) |
18-25 |
19-26 |
27-35 |
28-35 |
30-40 |
35-45 |
40-55 |
45-60 |
55-65 |
60-80 |
65-100 |
