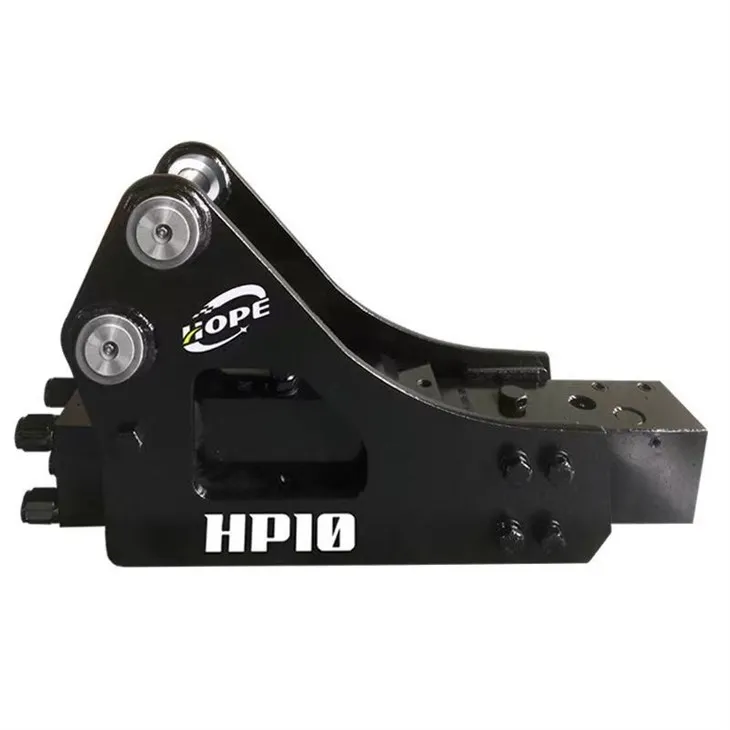

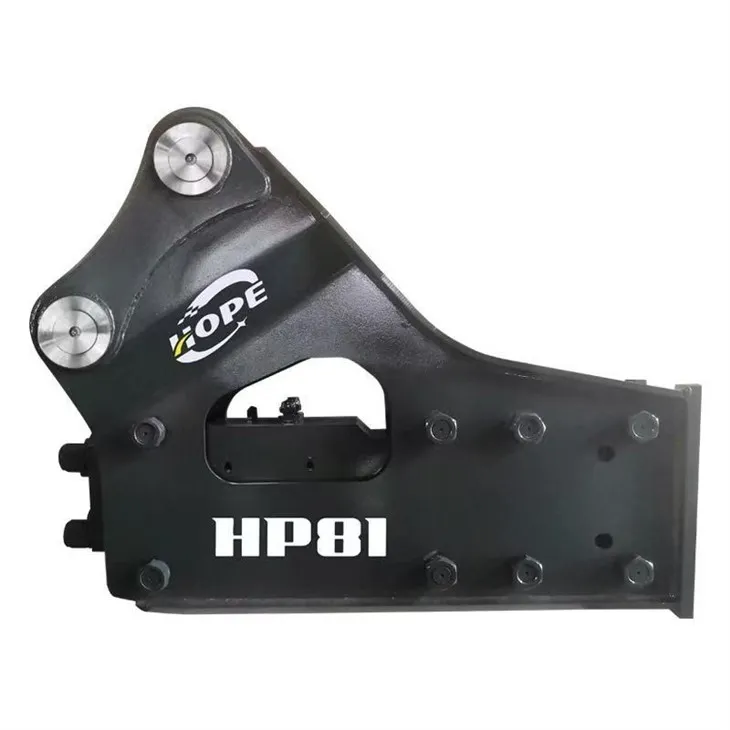

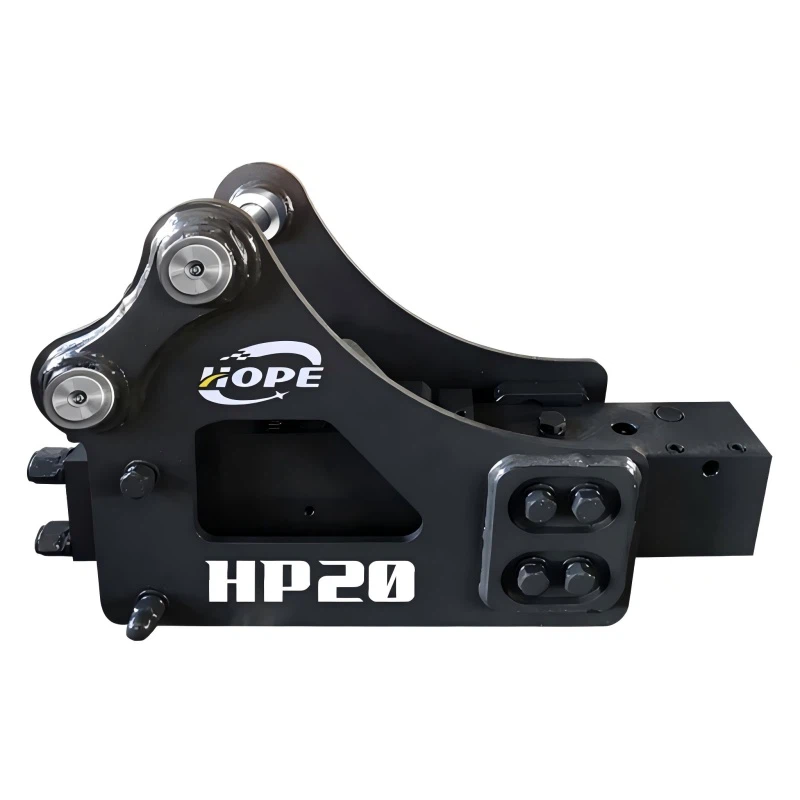

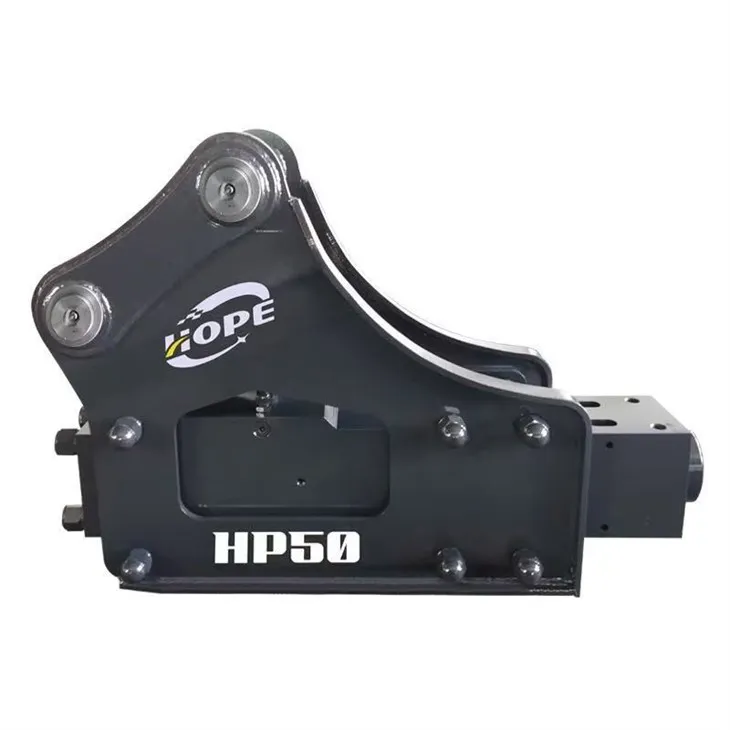

Side Type Hydraulic Breaker
We designed our side type hydraulic breaker for the daily grind of construction and demolition work. The side-mounted cylinder isn't just a layout choice-it gives operators a clear, unobstructed view of the work area, so every strike hits where it's supposed to, even in tight, fast-paced job sites.
This breaker handles concrete, hard rock, asphalt, and quarry stone reliably, day after day. It fits most mini, small, and medium-sized excavators with standard mounting, so you can swap it on quickly without extra modifications.
Key Advantages
- Side-mounted structure delivers better visibility and more precise operation
- Hydraulic-gas system provides consistent, powerful impact for efficient breaking
- Heavy-duty, wear-resistant components extend service life and cut down on downtime
- Simplified internal design makes on-site maintenance and repairs straightforward
- Universal mounting fits most excavator brands for fast, easy installation
Technical Specifications
Compact & Mid-Size Models
|
Models |
HP05 |
HP10 |
HP20 |
HP30 |
HP35 |
HP40 |
HP43 |
HP45 |
HP50 |
HP60 |
|
|
Weight (kg) |
85 |
95 |
129 |
170 |
240 |
270 |
275 |
375 |
500 |
770 |
1300 |
|
Length (mm) |
850 |
910 |
1070 |
1160 |
1300 |
1360 |
1360 |
1570 |
1730 |
1900 |
2280 |
|
Required Oil Flow (l/min) |
10-25 |
15-25 |
20-30 |
25-50 |
36-60 |
40-70 |
40-70 |
50-90 |
60-100 |
80-110 |
90-120 |
|
Operating Pressure (kg/cm²) |
80-110 |
90-120 |
90-120 |
90-120 |
100-130 |
110-140 |
110-140 |
120-150 |
130-160 |
150-170 |
150-170 |
|
Impact Rate (b.p.m) |
900-1400 |
800-1400 |
700-1200 |
600-1100 |
600-1000 |
500-900 |
500-900 |
500-800 |
400-700 |
350-700 |
350-650 |
|
Hose Diameter (inch) |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
1 |
|
Chisel Diameter (mm) |
35 |
40 |
45 |
53 |
60 |
68 |
70 |
75 |
85 |
100 |
125 |
|
Suitable Carrier (ton) |
0.5-2 |
0.8-2.5 |
1.2-3 |
2.5-4 |
3-5 |
4-7 |
4-7 |
5-8 |
9-14 |
10-16 |
15-18 |
Heavy-Duty Models
|
Models |
HP81N |
HP81 |
HP100 |
HP121 |
HP131 |
HP151 |
HP185 |
HP195 |
HP205 |
HP210 |
HP215 |
|
Weight (kg) |
1530 |
1735 |
2500 |
2500 |
2900 |
3750 |
4200 |
4850 |
5850 |
6600 |
6800 |
|
Length (mm) |
2420 |
2480 |
2770 |
2770 |
2820 |
3180 |
3320 |
3420 |
3530 |
3660 |
3850 |
|
Required oil flow (l/min) |
120-150 |
120-180 |
150-190 |
180-240 |
200-250 |
200-260 |
220-270 |
250-310 |
290-340 |
320-360 |
340-380 |
|
Operating Pressure (kg/cm²) |
160-180 |
160-180 |
160-180 |
160-180 |
180-200 |
180-200 |
220-270 |
260-300 |
270-300 |
270-300 |
270-300 |
|
Impact rate (b.p.m) |
350-600 |
350-550 |
350-500 |
300-450 |
250-400 |
200-350 |
200-250 |
180-200 |
150-200 |
100-150 |
90-130 |
|
Hose diameter (inch) |
1 |
1 |
1 |
1 |
5/4 |
5/4 |
5/4 |
5/4 |
5/4 |
5/4 |
5/4 |
|
Chisel diameter (mm) |
135 |
140 |
150 |
155 |
165 |
175 |
185 |
195 |
205 |
210 |
215 |
|
Suitable Carrier (ton) |
18-25 |
19-26 |
27-35 |
28-35 |
30-40 |
35-45 |
40-55 |
45-60 |
55-65 |
60-80 |
65-100 |
Common Applications
Concrete breaking and building demolition
01
Rock breaking and small-scale quarry operations
02
Road construction and asphalt surface removal
03
Trench excavation and municipal engineering projects
04
Site renovation and construction waste processing
05
About Our Breakers
We build every side type hydraulic breaker with job site practicality in mind. From the material selection to the internal structure, every detail is tuned to keep your equipment running, reduce maintenance headaches, and help you finish projects on time, every time.
