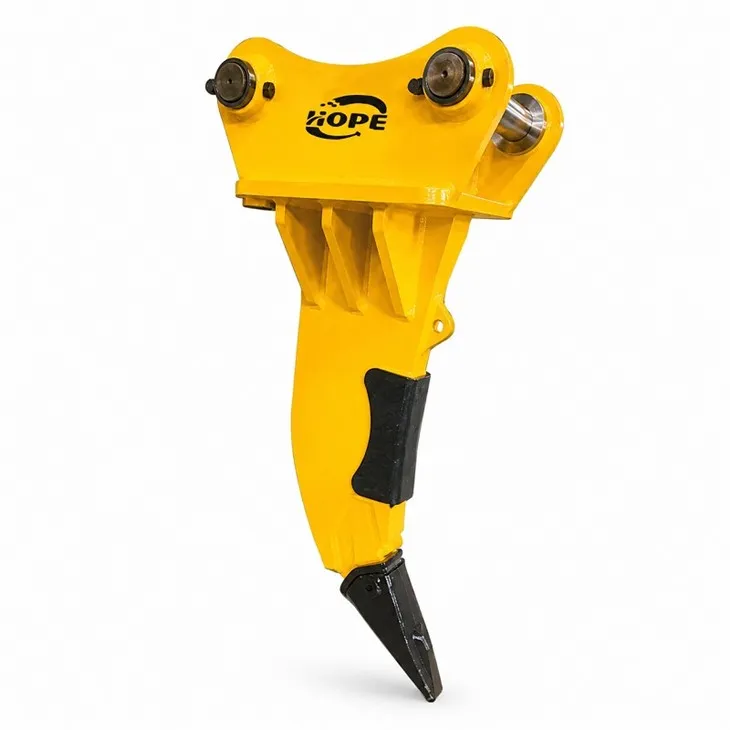

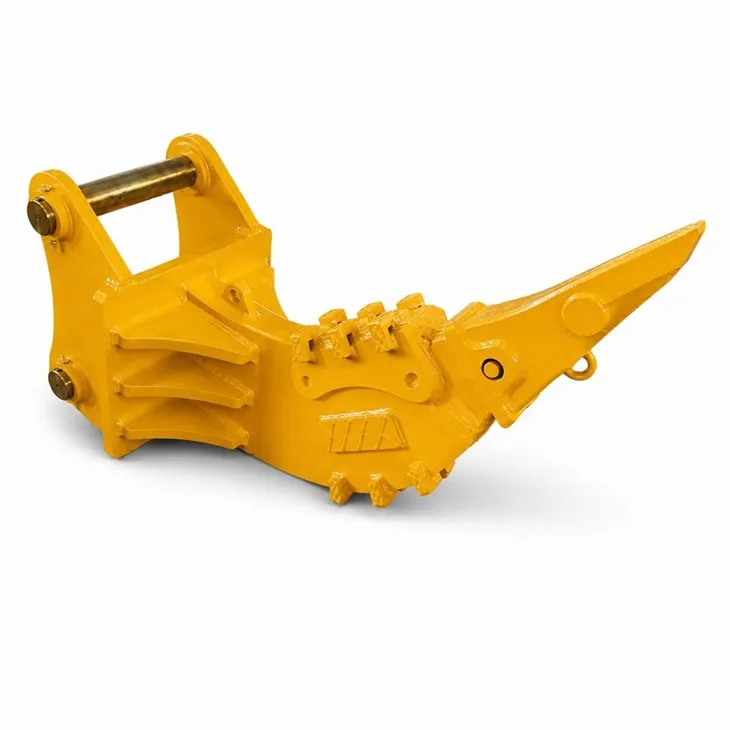

HOPE Excavator Ripper
If standard buckets struggle with compacted soil, weathered rock, or frozen ground, the HOPE Excavator Ripper gives you the extra penetration needed to get the job done. Built for construction, mining and landscaping sites, it turns your excavator into a more effective tool for breaking up the toughest ground conditions.
Each ripper is sized to match your excavator and designed for real-world penetration force. Whether you're preparing a building site, clearing land, or working in frozen tundra areas, it loosens hard materials efficiently and reduces your reliance on extra breaking equipment, helping projects move faster.
Key Features
High-Strength Q355 Steel Construction
The ripper body is forged from Q355 structural steel for better tensile strength and impact resistance. This makes it stable enough to handle repeated stress when breaking hard rock and compacted soil, reducing the risk of bending or cracking even under heavy daily use.
Corrosion-Resistant Finish
A durable protective coating is applied to each ripper to improve resistance against moisture, mud and outdoor exposure. This helps extend service life, lowers maintenance needs, and keeps the attachment performing reliably in harsh job site environments.
Customizable Ripper Teeth
We offer fully customizable teeth options to match your working conditions. You can choose different tooth shapes, sizes and hardness levels - from narrow, sharp tips for rock breaking to wider teeth for aggressive soil penetration - all tailored to your excavator and project type.
Technical Specifications
|
Model |
Suitable Carrier (ton) |
Pin Distance (mm) |
Total Width (mm) |
Total Height (mm) |
Total Length (mm) |
Pin Diameter (mm) |
Arm Width (mm) |
Weight (kg) |
|
HP-Mini |
1.5-4 |
85-200 |
260 |
310 |
700 |
25-40 |
90-150 |
50 |
|
HP-02/04 |
5-9 |
220-310 |
320 |
420 |
800 |
45-55 |
180-230 |
80 |
|
HP-06 |
12-18 |
390 |
430 |
530 |
1000 |
60-70 |
220-315 |
280 |
|
HP-08 |
19-24 |
465 |
530 |
670 |
1400 |
70-80 |
300-350 |
400 |
|
HP-10 |
25-32 |
515 |
610 |
700 |
1620 |
90 |
350-410 |
550 |
|
HP-17 |
36-45 |
580 |
680 |
800 |
1720 |
100-120 |
370-480 |
900 |
Ideal Applications
- Hard soil & rock breaking: Loosening weathered rock, compacted clay and frozen ground for excavation and site prep
- Tundra & cold-region work: Breaking through ice and permafrost for infrastructure and construction projects
- Mining & quarry operations: Loosening overburden and fragmented rock to improve material handling
- Land clearing & site preparation: Breaking up hard ground, roots and compacted layers before building
- Road construction: Breaking old pavement and base layers for new road development
