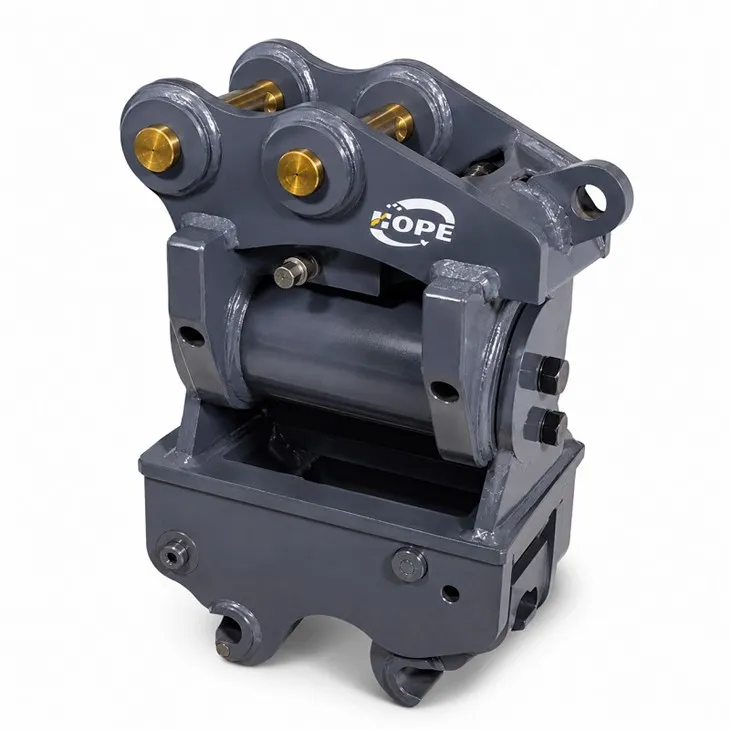

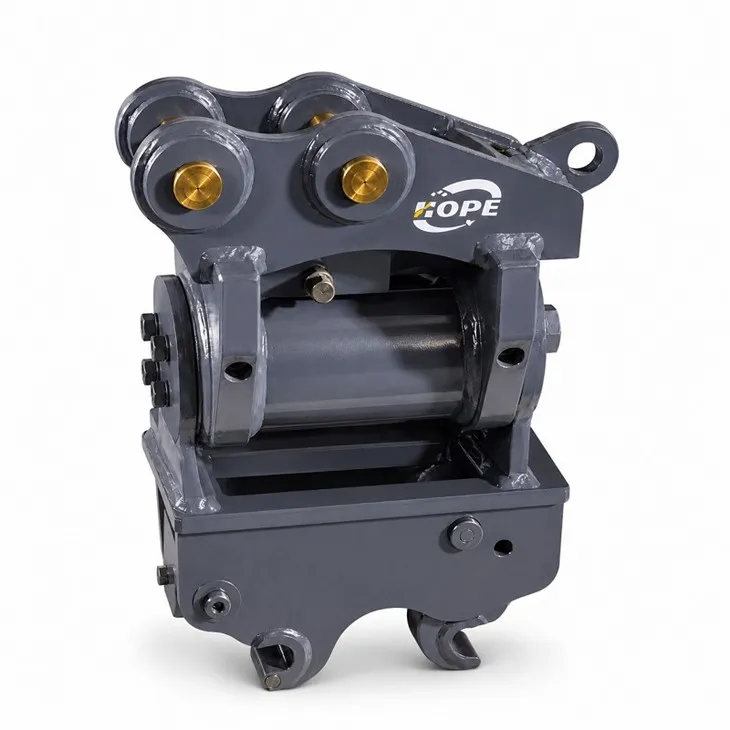

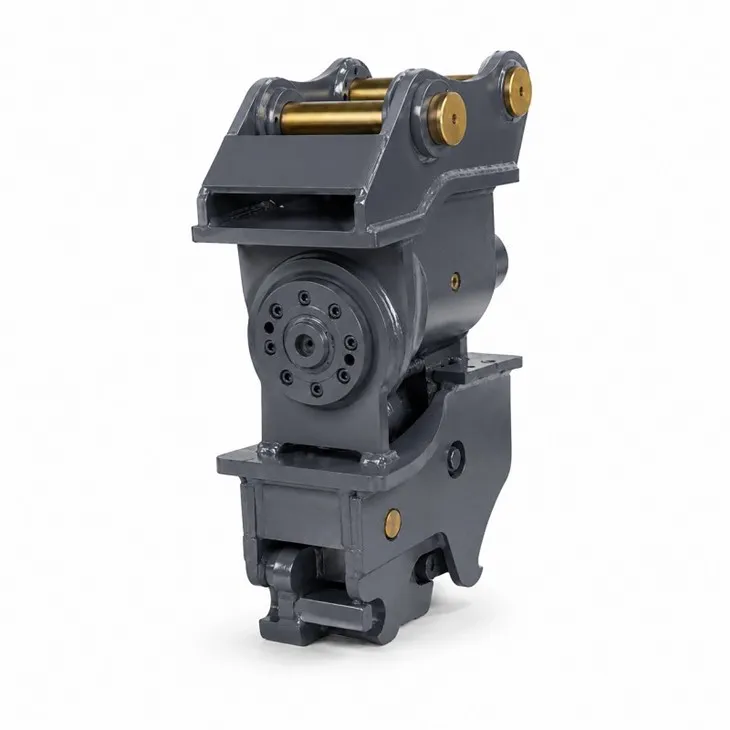

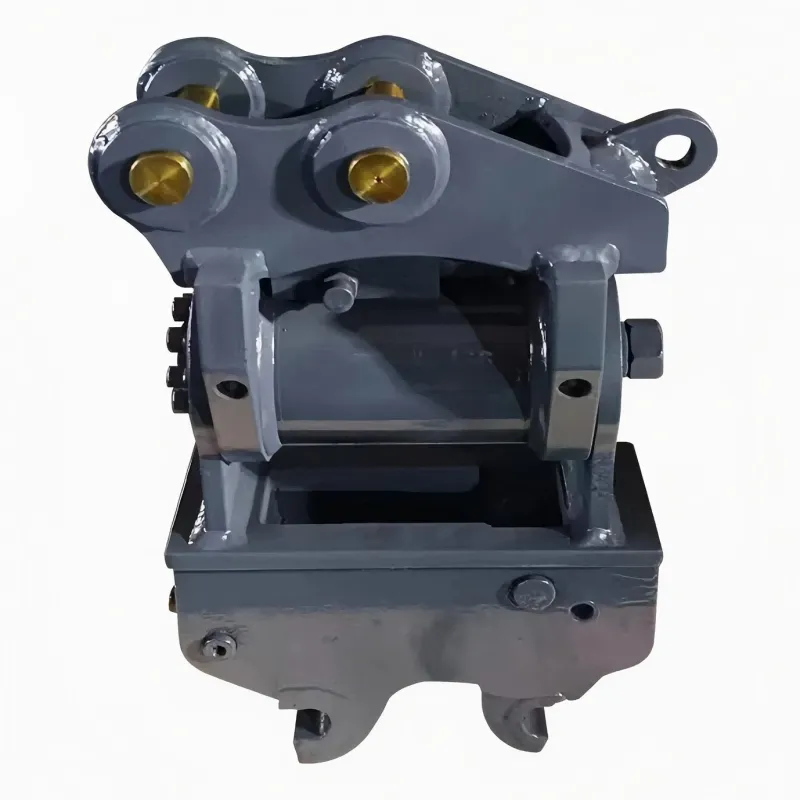

Tilt Quick Coupler
HOPE Tilt Quick Coupler combines hydraulic tilt with a reliable quick-change system, making it ideal for grading, trenching and slope work that requires high precision.Unlike standard hitches, this coupler allows operators to adjust excavator attachments (buckets, rakes, augers) to a specific angular degree from the cab, eliminating time-consuming machine repositioning and manual grade adjustments.
This coupler is built for daily heavy-duty operation, with a strong dual-cylinder tilt structure and solid construction, perfect for landscapers, contractors and road teams looking for reliable accuracy and efficiency.
Performance Details
|
Model |
Suitable Weight (ton) |
Tilt Degree (°) |
Working Pressure (bar) |
Working Flow (L/min) |
Product Weight (kg) |
|
HP-Mini |
1-4 |
180 |
210 |
3-6 |
80 |
|
HP-02 |
5-6 |
180 |
210 |
3-6 |
120 |
|
HP-04 |
7-9 |
134 |
210 |
6-12 |
200 |
|
HP-06 |
10-17 |
134 |
210 |
24-28 |
400 |
|
HP-08 |
18-24 |
134 |
210 |
32-44 |
600 |
What Sets This Tilt Coupler Apart
1.Customized for different excavator sizes
Mini/02 models offer a full 180° swing range for maximum flexibility in landscaping and tight trenching jobs. Larger HP-04/06/08 models provide a 134° tilt angle, optimized for heavy grading and slope work where structural strength is critical.
01
2.Heavy-Duty Hydraulic System
Delivers consistent power at 210 bar working pressure with flow rates tailored to each model (3–44 L/min). This ensures smooth, responsive tilt control even under load, preventing jerky movements and ensuring precise grading.
02
3.Durable Construction
Fabricated from high-tensile steel with reinforced welds and heavy-duty pivot pins. The sealed hydraulic cylinder system protects against dust, water, and debris, ensuring long service life in all weather conditions.
03
4.Integrated Quick Hitch & Safety
Combines a hydraulic quick-lock system for fast attachment changes with a mechanical safety pin to prevent accidental detachment. Visual confirmation locks ensure operators can work with confidence.
04
5.Universal Compatibility
Designed to fit all standard excavator arm dimensions across major brands. No modification is needed for installation, making it a versatile upgrade for any excavator fleet.
05
Application
This tilt coupler is built to handle a wide range of precision jobs. It helps with fine grading and slope work, allowing you to form consistent angles for roads, lawns and retaining walls without frequently repositioning the excavator.
For trenching and utility projects, it lets you dig accurate trenches for pipes, cables and irrigation lines at the proper depth and working angle. It also works well in landscaping and hardscaping tasks, such as shaping landscape beds, building terraces and finishing grading work for planting zones.
In site preparation and civil engineering, the unit supports reliable leveling of building pads, forming embankments and general ground preparation before construction.
