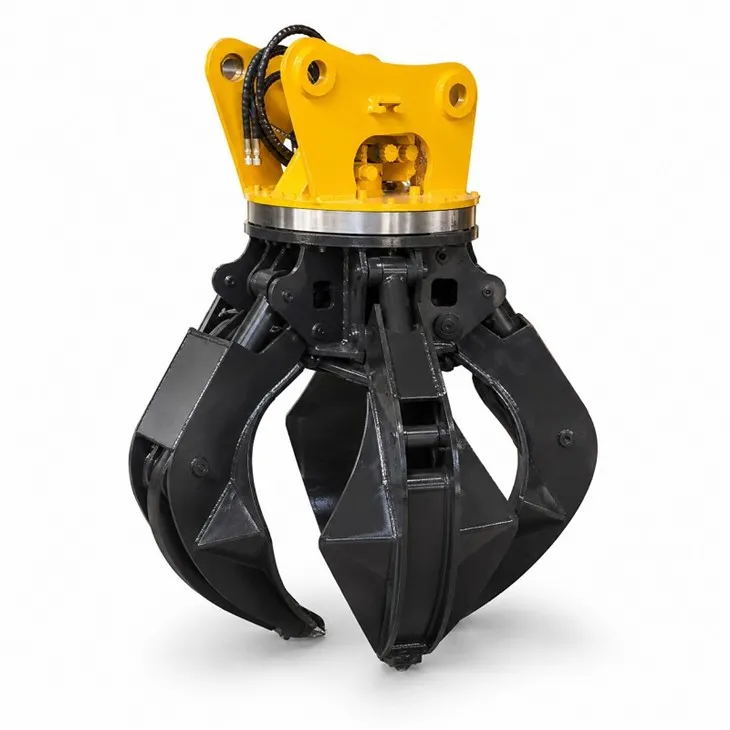

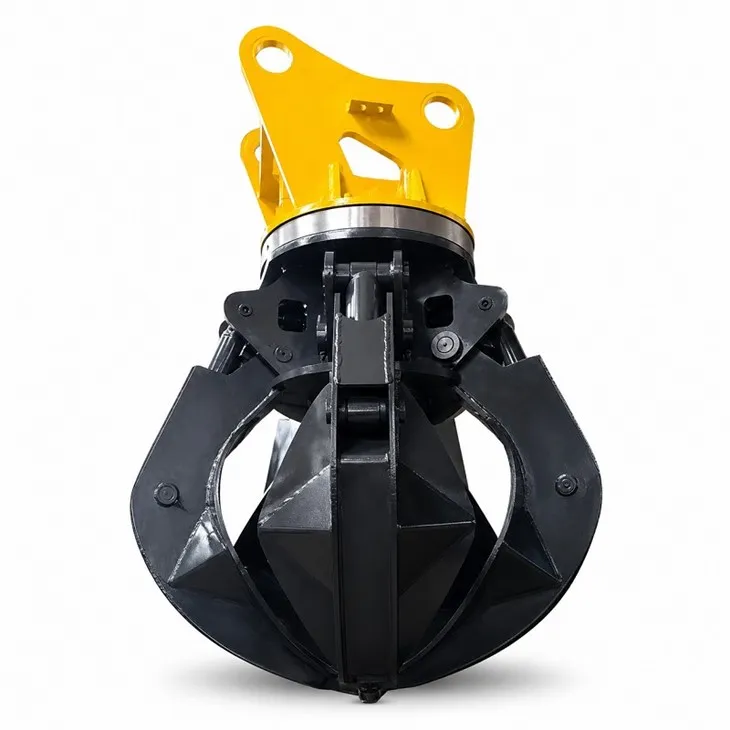

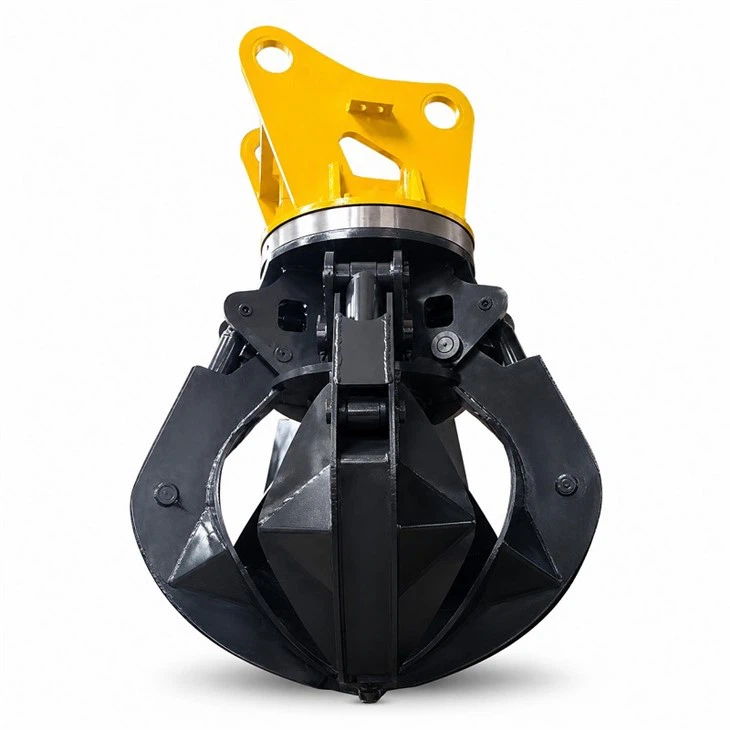

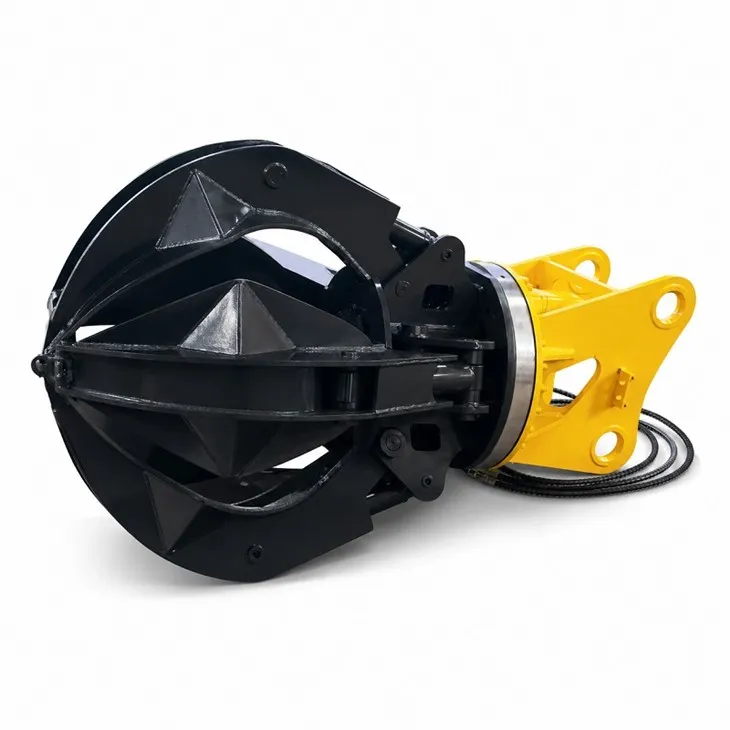

Orange Peel Grapple
This is a heavy-duty excavator attachment made for moving scrap metal, waste, and construction debris. Its multi-jaw design grips irregular loads securely, perfect for scrap yards, recycling centers, and demolition work.
We use high-wear steel for the jaws, so it holds up to daily abrasion and heavy use. You can add a 360° hydraulic rotation option to position the grapple without moving the excavator, saving time on every job.
Key Features
- Wear-resistant steel jaws for long service life
- Strong clamping force for heavy scrap and waste
- Optional 360° continuous rotation
- Simple, low-maintenance design
Technical Parameters
|
Model |
Fits Excavator (ton) |
Open Width (mm) |
Close Width (mm) |
Close Height (mm) |
Opening Height (mm) |
Cylinder Thrust (ton) |
Working Pressure (kg/cm²) |
Weight (kg) |
|
HP-02 |
5-9 |
1260 |
970 |
890 |
1060 |
4 |
180-210 |
360-400 |
|
HP-06 |
10-17 |
1580 |
1210 |
1110 |
1325 |
6.5 |
210-250 |
700-800 |
|
HP-08 |
18-24 |
1975 |
1510 |
1390 |
1660 |
10.5 |
210-250 |
950-1100 |
|
HP-10 |
25-32 |
2275 |
1740 |
1600 |
1910 |
13 |
210-250 |
1500-1700 |
FAQ
Q: Why choose an orange peel grapple over a standard grapple?
A: The multi-jaw design wraps around uneven, fragmented loads like scrap, giving a much better grip for sorting and loading.
Q: Will this grapple fit my excavator?
A: We offer models for 5-32 ton excavators, and each is built to match standard pin dimensions for direct, bolt-on installation.
Q: How do I maintain it?
A: Just grease the pivot points regularly and check the wear plates on the jaws.
