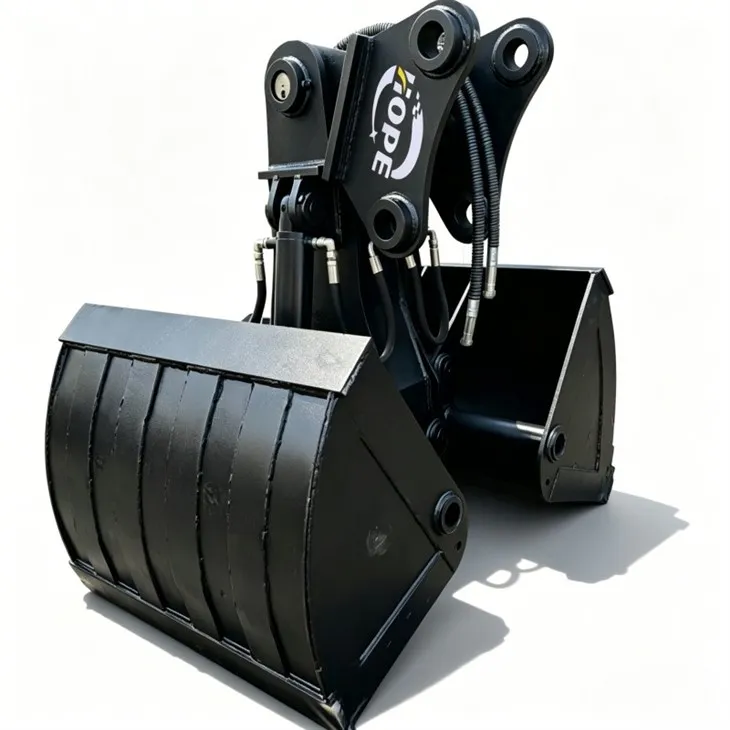

Excavator Clamshell Grab
This excavator clamshell grab is intended for digging and handling bulk materials on site. It is mainly used to grab sand, gravel, soil and construction waste, and can be installed on excavators between 3 tons and 45 tons.
When working with loose materials, ordinary buckets often leak and spill. This type of grab uses two hydraulic-driven shells to close and hold materials tightly, reducing waste during lifting and moving.
The structure is made of wear-resistant steel to ensure strength during long-term use. The weight is properly matched with the excavator, so it does not cause extra burden to the machine's hydraulic system.
We provide two configurations: rotating and non-rotating. The 360° rotating type is suitable for narrow working areas such as trenches and ports. The non-rotating type is simpler in structure and is mostly used for daily loading and unloading.

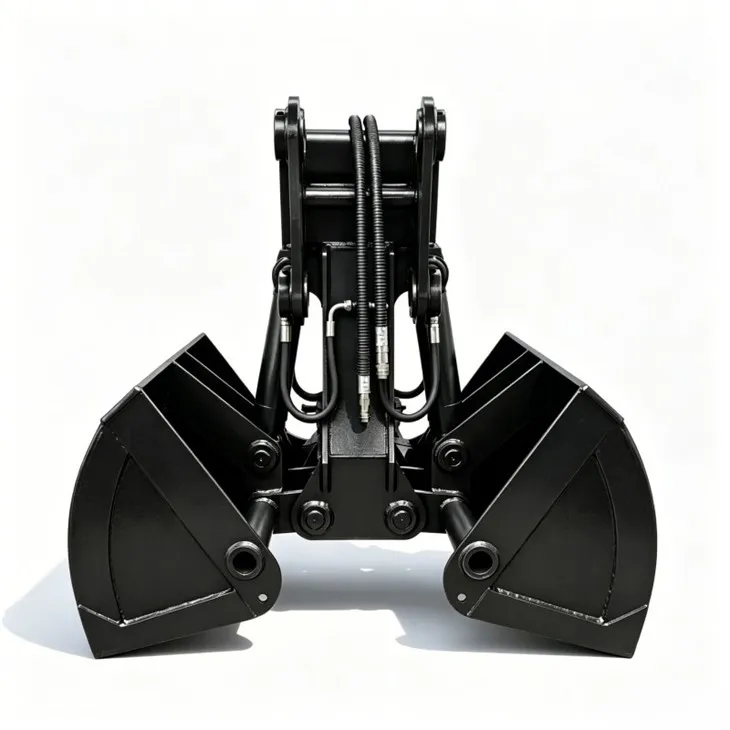

The two hydraulic cylinders drive the shells at the same time, keeping the movement stable. This design helps avoid jamming when dealing with irregular materials.
Installation uses a universal interface. It can be connected to most quick couplers without extra modification, making replacement between attachments more efficient.
Specifications (Non-Rotating)
5–8 ton
Capacity: 0.35 m³
Inner Width: 800 mm
Max Opening: 1424 mm
Length: 1191 mm
Width: 840 mm
Height: 1676 mm
Net Weight: 467 kg
20 ton
Capacity: 1.0 m³
Inner Width: 1000 mm
Max Opening: 2041 mm
Length: 1898 mm
Width: 1076 mm
Height: 2718 mm
Net Weight: 1340 kg
30 ton
Capacity: 1.5 m³
Inner Width: 1160 mm
Max Opening: 2207 mm
Length: 2028 mm
Width: 1240 mm
Height: 2877 mm
Net Weight: 1538 kg
35 ton
Capacity: 1.8 m³
Inner Width: 1400 mm
Max Opening: 2207 mm
Length: 2028 mm
Width: 1480 mm
Height: 2739 mm
Net Weight: 1805 kg
The HOPE excavator clamshell Grab performs well in bulk material handling. It loads and unloads sand, gravel and construction debris efficiently, helping keep the work area organized and improving overall productivity.
It also supports on-site recycling by processing waste material directly at the point of work. Debris can be reused as aggregate, reducing transport and disposal costs over the project.
When used with an excavator, it provides stable support for deep excavation and foundation work. Material handling remains clean and controlled without extra tools or additional handling steps.
This attachment works in a variety of environments, including residential construction, commercial demolition and industrial waste processing. It fits well in confined spaces and holds up under frequent daily use.
