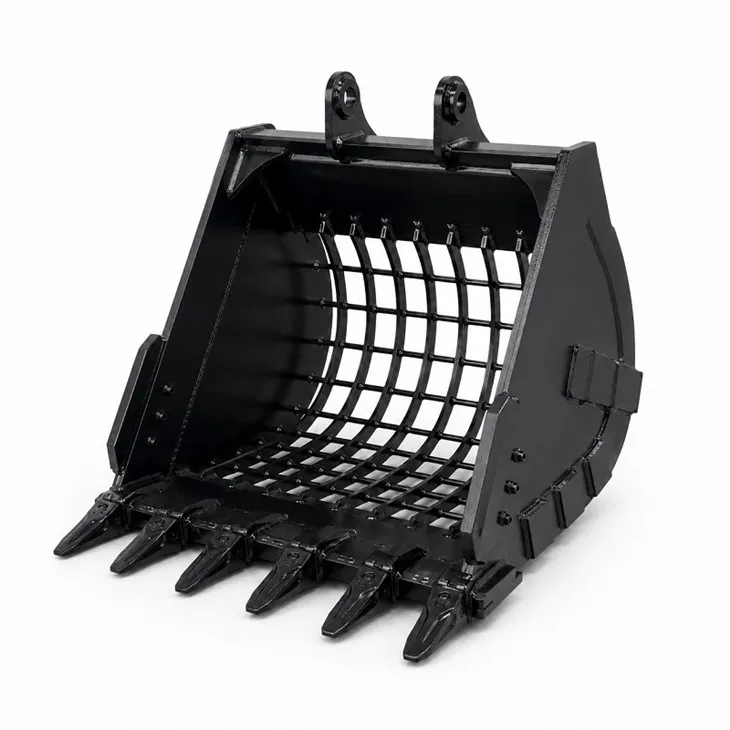

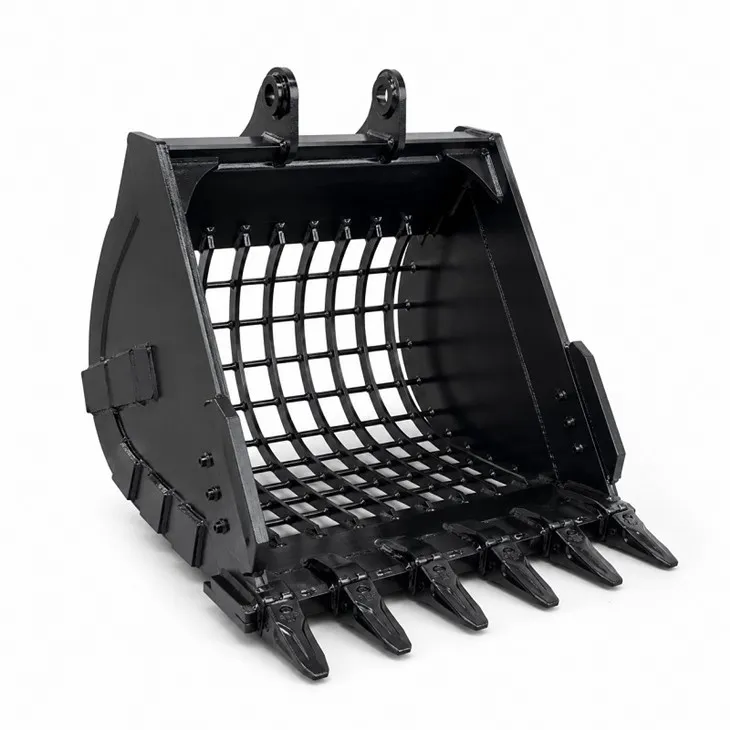

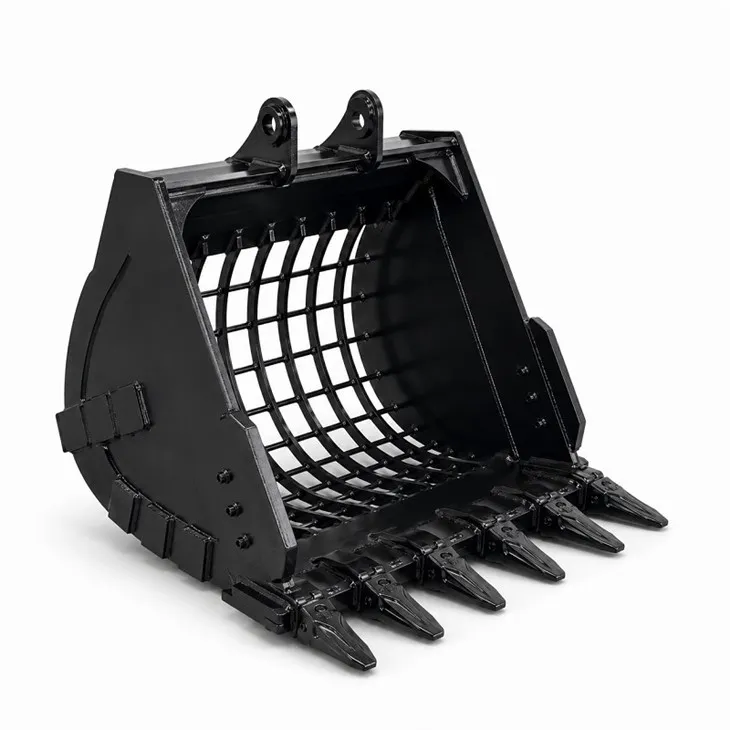

Skeleton Bucket Attachment
The HOPE Skeleton bucket attachment is designed for excavators, built to sort, sift and load loose materials across different job sites. It performs well in municipal work, agriculture, forestry and water conservancy projects, handling soil, debris and larger materials in a single pass. This means less extra handling and more efficient work on site.

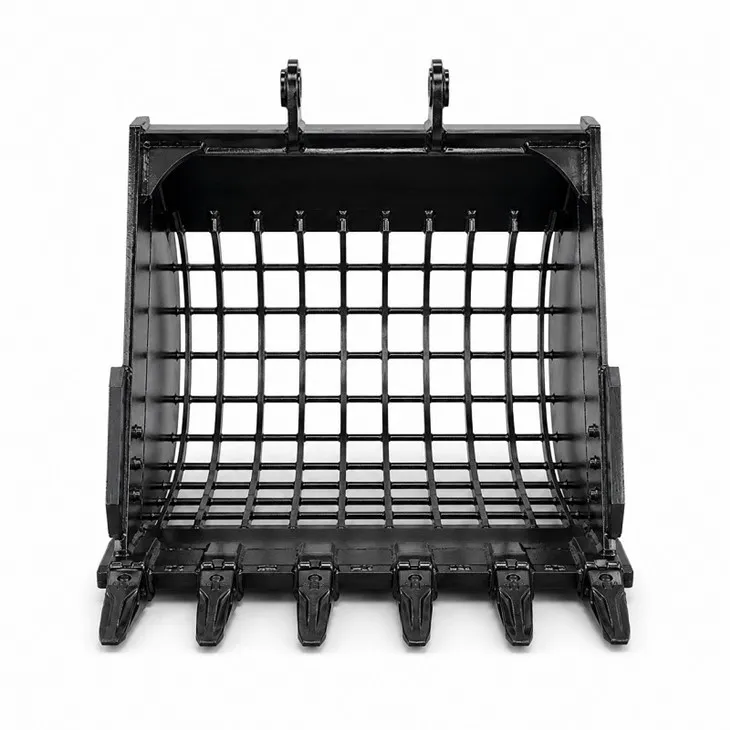

The grid design of this Skeleton bucket attachment Attachment sets it apart from a standard digging bucket. During operation, fine soil and small debris pass through the grid, while rocks, roots and other bulky materials stay held inside. This eliminates the need for extra screening on site, helping you save time and reduce labor costs.
Grid openings can be customized to match your actual working conditions and materials. Whether you are sifting topsoil for landscaping, cleaning up construction waste or removing roots in forestry clearing, we can adjust the spacing to fit your needs.
Made with strong structural steel, the HOPE skeleton bucket attachment is built for heavy daily use. It comes with reinforced digging teeth and grid edges. The hardened teeth provide longer wear life, and the entire grid frame is stable enough to resist bending or breaking even under tough working loads.
This attachment works across multiple industries, so you don't need separate tools for different jobs. It sorts and loads soil and debris in municipal construction, sifts topsoil and cleans fields in agriculture, separates roots, branches and soil in forestry land clearing, and handles sand, gravel and sediment in water conservancy projects.
The bucket is compatible with most excavators, from small 7-ton compact models up to heavy-duty 36-ton machines. Standard pin sizes make installation simple, and it fits most common excavator brands and models without extra modifications.

Specifications
|
Model |
Suitable Excavator Weight (ton) |
Pin Diameter (mm) |
Pin Distance (mm) |
Width (mm) |
Arm Width (mm) |
|
HP-04 |
7-9 |
50 |
310 |
1200 |
220 |
|
HP-06 |
12-18 |
60-65 |
360 |
1500 |
260 |
|
HP-08 |
19-24 |
80 |
465 |
1800 |
340 |
|
HP-10 |
25-36 |
90-100 |
530 |
2000 |
390 |
Questions
Q: What's the difference between a skeleton bucket attachment and a rotary screening bucket?
A: A skeleton bucket attachment uses a fixed grid to sift materials while digging, making it efficient for fast on-site sorting. A rotary screening bucket uses a spinning drum for continuous processing, which is better for high-volume mining and recycling work.
Q: Can I customize the grid size for my project?
A: Yes, we provide custom grid openings based on material type, site conditions and project needs. Just let us know your requirements, and we can build a bucket that matches your workflow.
Q: What maintenance does this bucket need?
A: Maintenance is simple. Keep the pin joints greased regularly, check the grid and teeth for wear, and retighten loose bolts when needed. With no complex moving parts, downtime on the job is kept to a minimum.
