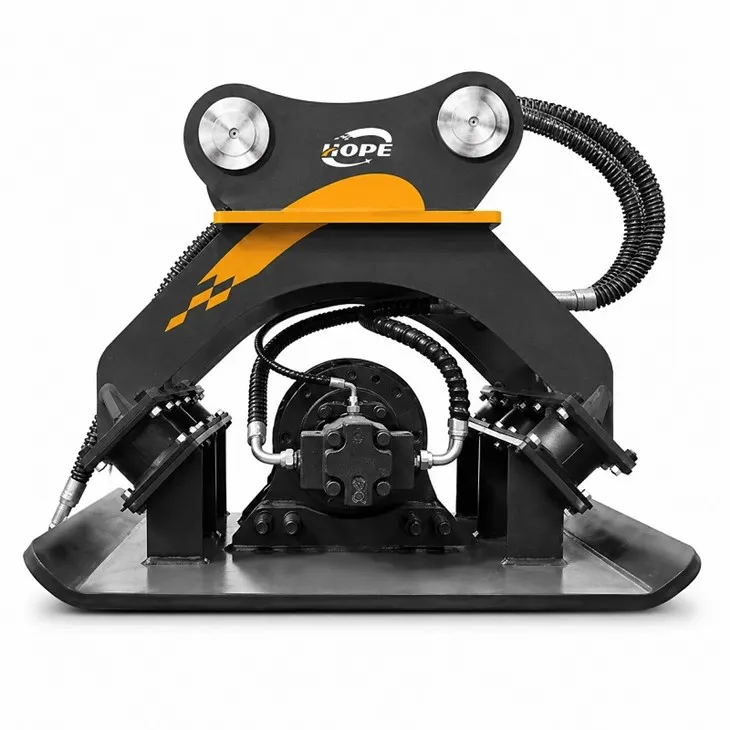

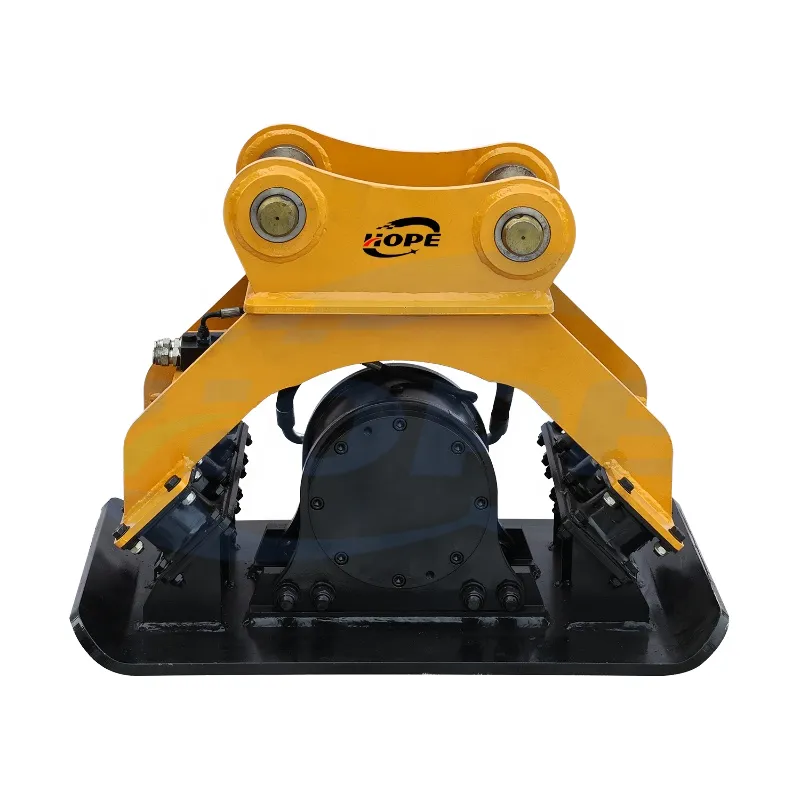

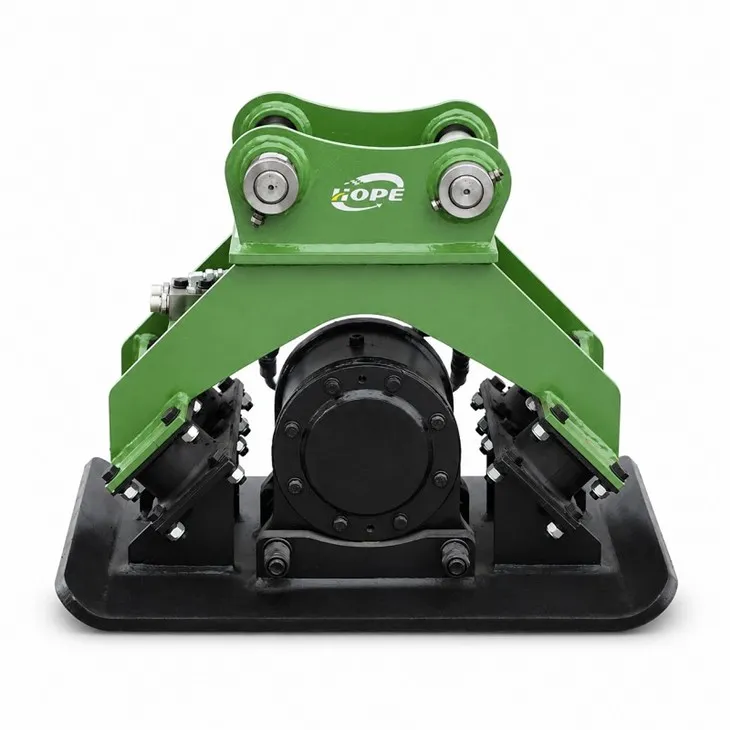

Excavator Vibrating Compactor
Turn your excavator into a strong on-site compaction unit with the HOPE excavator Vibrating Compactor.It's built for excavators from 3.5 to 32 tons.This attachment provides steady, high-frequency compaction for slopes, ditches, foundation backfill, and all tight-space jobs a roller can't reach.
Unlike rented standalone compactors that take extra crew and equipment, this model mounts directly to your excavator's hydraulic breaker line.No extra tools or separate machines required.Simply hook up the pipeline, and you can compact soil, gravel and backfill in minutes.
Why HOPE Compactors Stand Out
HOPE excavator vibrating compactors are built tough from the ground up. We use full Q355 high-strength structural steel in the main frame to resist bending and wear under constant vibration. This level of rigidity lets the attachment hold up through long hours of sloping, ditch compaction, and foundation backfill work, making it ready for real job-site abuse rather than just light-duty tasks.
The hydraulic setup is kept simple and universal. Our compactor is designed to work with standard hydraulic breaker pipelines, so you won't need to modify your excavator's auxiliary system. It offers true plug-and-play installation for most 3.5–32 ton excavators, cutting down mounting time and reducing costly downtime on site.
Each unit is powered by a reliable imported hydraulic motor for high-efficiency, consistent performance. It delivers a steady 2000 rpm vibration frequency across all models, ensuring firm, even compaction for soil, backfill, and granular materials. Stable, controlled vibration means fewer uneven areas and higher-quality results for foundations, landscaping, and trenching projects.
Operation is smooth and predictable as well. The specially shaped compaction plate distributes force evenly across the surface, preventing bouncing or skipping during use. Whether working on steep slopes, narrow ditches, or large backfill areas, the operator stays in full control, making this attachment adaptable to nearly any on-site condition.
Technical Specifications
|
Models |
Mini |
02/04 |
06 |
08 |
10 |
|
Suitable Carrier (ton) |
3-4 |
5-9 |
10-17 |
18-24 |
25-32 |
|
Upper shaft diameter (mm) |
25/40 |
45/55 |
60/65 |
70/80 |
90 |
|
Stricking power (ton) |
3 |
4 |
6.5 |
15 |
15 |
|
Maximum impact frequency (rpm) |
2000 |
2000 |
2000 |
2000 |
2000 |
|
Operating Pressure (kg/cm²) |
100-130 |
110-140 |
150-170 |
160-180 |
160-180 |
|
Impact area (mm²) |
590*330 |
900*550 |
1160*700 |
1250*900 |
1250*900 |
|
Required oil flow (l/min) |
30-60 |
45-75 |
85-105 |
120-170 |
120-170 |
|
Total height (mm) |
435 |
730 |
900 |
1000 |
1050 |
|
Total width (mm) |
442 |
550 |
700 |
900 |
900 |
|
Product weight (kg) |
200 |
300 |
600 |
850 |
900 |
Common Applications
- Foundation backfill: Compact soil and gravel to reduce settlement under structures.
- Slope & ditch compaction: Handles uneven slopes and narrow trench bottoms where hand tamping is too slow.
- Landscaping projects: Compacts base material for patios, walkways, and driveways.
- Pipe & utility backfilling: Stable compaction around buried pipes and cables.
